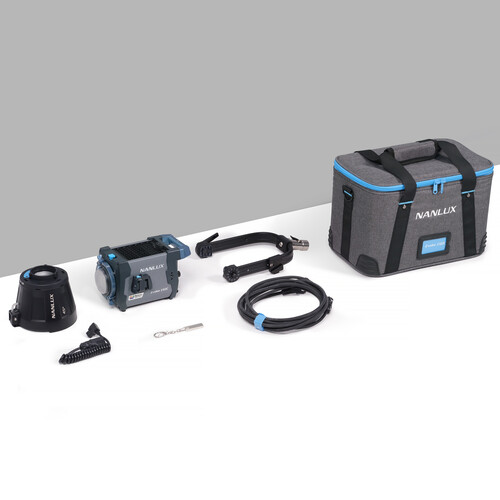

Nanlux Evoke 150C LED Full-Colour Spot Light with Case
Nanlux Evoke 150C LED Full-Colour Spot Light with Case - Image 2
Nanlux Evoke 150C LED Full-Colour Spot Light with Case - Image 3
Nanlux Evoke 150C LED Full-Colour Spot Light with Case - Image 4
Nanlux Evoke 150C LED Full-Colour Spot Light with Case - Image 5
Nanlux Evoke 150C LED Full-Colour Spot Light with Case - Image 6

Nanlux Evoke 150C LED Full-Colour Spot Light with Case

Availability:

Available on back-order

$1,618.76 inc GST

Available on back-order

Powerful Colour in a Lightweight All-in-One

The Nanlux Evoke 150C is a revolutionary full-colour LED spotlight built for professionals who need uncompromising performance, compact portability, and rugged reliability. Engineered with the new Nebula C8 light engine and an ultra-light magnesium alloy body, it delivers cinema-grade colour rendering and robust weatherproof protection in a single, cable-free unit.

Whether you’re shooting on set, in the field, or on location, the Evoke 150C’s intuitive design, advanced control options, and full-colour capabilities make it the perfect choice for film, broadcast, documentary, and owner-operator work.

Key Features

All-in-One Compact Design
The Evoke 150C integrates its power supply and controller into a single magnesium-alloy unibody. At just 2.11kg, it’s easy to rig, carry, and transport without sacrificing output.

Cinema-Grade Colour Accuracy
Powered by the Nebula C8 engine, it offers an extraordinary 1,000K–20,000K CCT range, green/magenta shift control, and full-spectrum colour with deep red, amber, lime, cyan, and indigo LEDs.

Built for Real-World Production
IP66 rated for harsh weather. Includes ergonomic tilt-yoke, angle markings, and PosiTight locking system. Runs on AC or battery with full output.

Tech Specs

  • Power: 150W
  • CCT Range: 1000K – 20,000K (G/M ±200)
  • Light Engine: Nebula C8 (dRRALGCBI)
  • CRI / TLCI / TM-30: CRI 96, TLCI 97, Rf 96, Rg 100
  • Dimming: 0.0%–100.0%, adjustable in 0.1% steps
  • Beam Angle: 47° (native)
  • Mount: FE Mount (also supports FM Mount)
  • Weight: Light fixture 2.11kg
  • Power Input: AC 100–240V or DC 14.4–28V V-mount battery
  • IP Rating: IP66 (dust and water resistant)
  • Control Options: On-board, NANLINK app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN, NFC, remote controller
  • Fan Modes: Smart, Full Speed, Low Speed, Pause, Off

Evoke 150C Compact Eight-Color PowerhouseThe Evoke 150C is designed for on-the-go lighting and flexible setups. The compact all-in-one fixture is equipped with the proprietary Nebula C8 Light Engine, delivering wide color temperature range, broad color gamut coverage, excellent light quality, and precise dimming performance. With an IP66-rated metal construction, FE mount design, and FM mount accessory ecosystem compatibility, the Evoke 150C allows filmmakers to effortlessly handle tasks such as detail accent lighting, moving fill light and hiding the light in tight spaces, ensuring smooth operation and worry-freeThe Evoke 150C is designed for on-the-go lighting and flexible setups. The compact all-in-one fixture is equipped with the proprietary Nebula C8 Light Engine, delivering wide color temperature range, broad color gamut coverage, excellent light quality, and precise dimming performance. With an IP66-rated metal construction, FE mount design, and FM mount accessory ecosystem compatibility, the Evoke 150C allows filmmakers to effortlessly handle tasks such as detail accent lighting, moving fill light and hiding the light in tight spaces, ensuring smooth operation and worry-freeCompact size doesn't mean compromising on output - the Evoke 150C delivers ample brightness at just 150W. It can effortlessly be used as a fill light for large scenes, or be used as a key or rim light in small spaces, bringing expressive and precisely controlled lighting to every shot.Light Quality Redefined With the Nebula C8 Light Engine, multiple lighting modes and seamless dimming, the Evoke 150C can consistently deliver exceptional light quality, whether producing white or colored light, or for smooth fade-ins and fade-outs.CCT Range: 1,000K-20,000K (G/M$200) 0.2 0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Achieves 79% coverage of the CIE 1931 visible color gamut. Achieves 3% more coverage within the visible color gamut than Rec. 2020. Achieves 92% coverage of the Rec. 2020 color space.Various Lighting Modes The Evoke 150C has six built-in lighting modes, adapting to different scenarios. Better Dimming Performance The Evoke 150C supports ultra-precise dimming in 0.1% increments and meets filmmakers' demand for precise control of lighting. With fully linear dimming, the Evoke 150C stays smooth at low brightness and produces natural, soft transitions when fading lights in or out.Fast & Easy Setup The on-set efficiency often comes from the optimization of details - faster setup, more reliable protection, and broader accessory compatibility. With this in mind, NANLUX develops the Evoke 150C from multiple aspects - including structure, materials, protection, and accessory ecosystem, integrating efficiency into every part of its design.Lightweight & Compact With a magnesium alloy body and optimized internal structure, the Evoke 150C is lighter and more compact than most similar-powered lights with separate components.Versatile Accessory Compatibility The fixture is designed with the new FE mount (with electronic contacts), and compatible with FM mout accessory ecosystem, allowing users to continue using their existing FM mount accessories. NANLUX has also developed motorized accessories for Evoke 150C, such as the motorized yoke* and the motorized Fresnel lens* (FL-12E), enabling precise light control when fixtures are mounted at height, rigged overhead, or positioned in hard-to-reach locations. To meet the needs of fixed mounting, a 5/8" Baby Pin with Quick Release Plate (AS-BP-QRS) is included in the kit, which can be directly attached to the quick-release base on the side of the fixture, allowing the fixture to be easily mounted anywhere on set.Dual Security The NANLUX PosiTight system has been added to the FE mount, providing a dual-safety mechanism that ensures a secure connection between the fixture and accessory.1/4"-20 Threads The fixture features three 1/4"-20 threads with anti-twist design on both sides and top, allowing the attachment of magnetic base for securing a wired controller or extension adapter. They can also be used to provide additional mounting points to secure the light even more in scenarios with increased risk of it falling, such as shooting inside a moving vehicle.DMX/RDM The Evoke 150C supports precise multi-light control via DMX/RDM when connected with the optional DMX Extension Adapter (AS-EXT-DMX), which converts the fixture's extension port into 5-pin XLR DMX IN/OUT.Evoke Lineup With the addition of the Evoke 150C, the Evoke lineup now includes daylight, bi-color, color fixtures, with power ratings up to 5000W - one family of lights providing multiple solutions for professional production. The same operation logic allows users to operate different fixtures without spending time readjusting. FE, BE, and NL mounts together constitute a comprehensive accessory ecosystem, enabling different fixtures to have versatile light-shaping options. Built for demanding shooting environments, all Evoke lights combine metal construction with IP ratings, reflecting professional engineering. Within the Evoke system, the Evoke 150C blends naturally into the workflow, integrating with other lights in the series to streamline and unify on-set lighting.Complete Accessory Ecosystem For lightweight fixtures, a wide range of accessories can amplify their lighting flexibility, meeting more diverse production needs. The Evoke 150C features the new FE mount, which can recognize FE mount accessories and further control motorized attachments or correct color shifts. The fixture can still illuminate when mounted on an accessory without electronic contacts. The FE mount is also compatible with NANLUX's existing FM mount accessory ecosystem, including modifiers, projection attachments, reflectors, and more, allowing users to continue using their existing accessories and reduce additional costs.FM Mount Accessory *under development Fresnel Lens* FL-12 FM Mount Projection Attachment with 10°/19°/36° Lens PJ-FMM-10/19/36 FM Mount Projection Attachment 180-36° PJ-FMM- 18-36 NANLITE NANUE FM Mount Softbox 60cm SB-FMM-60 FM Mount Octagonal Softbox 40cm/60cm SB-FMM-0-40/60 FM Mount Lantern Softbox 60cm LT-FMM-60Other accessoriesReliable Cooling System The Evoke 150C is equipped with an efficient cooling system featuring five built-in fan modes. In Smart mode, the average noise level is only 24 dB(A). Even during prolonged operation at full power, the fixture maintains quiet and stable output without interfering with on-set audio recording.Includes Evoke 150C × 1 Yoke × 1 RF-FE-45 FE Mount Reflector 45° × 1 5/8" Baby Pin with Quick Release Plate × 1 AC Power Cable 4.5m × 1 D-Tap Cable × 1 USB Flash Drive × 1 AS-MB-1 Magnetic Base × 1 User Manual × 1 Carrying Bag ×

SKU: NLEVOKE150C Category:
Weight49.906125 kg
Dimensions81 × 53 × 46.5 cm
