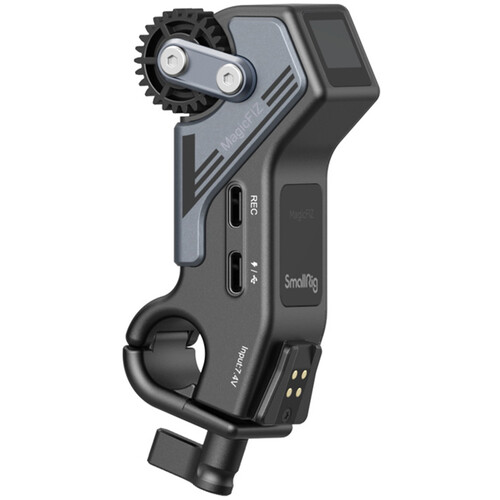

SmallRig Wireless Receiver Motor 3263

This Wireless Receiver Motor from SmallRig is a compact, wireless follow focus motor designed for use with the SmallRig Wireless Follow Focus System, including compatibility with the wireless handgrip and handwheel controller. The wireless motor features a clear 0.5″ OLED display that provides calibration data and a standard 0.8 MOD cine gear to fit a wide variety of DSLR and cine lenses. When powered using a separately available PD power source, it features a strong torque up to 0.5 Nm.

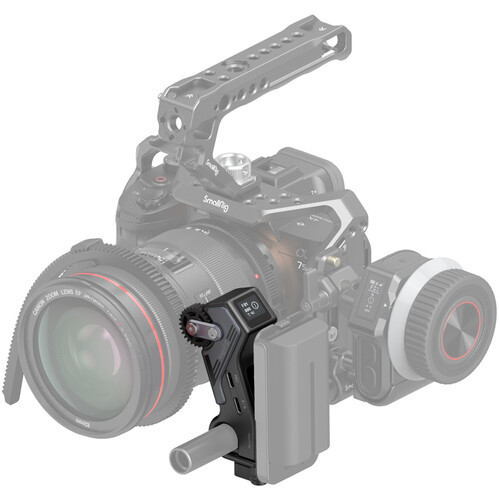

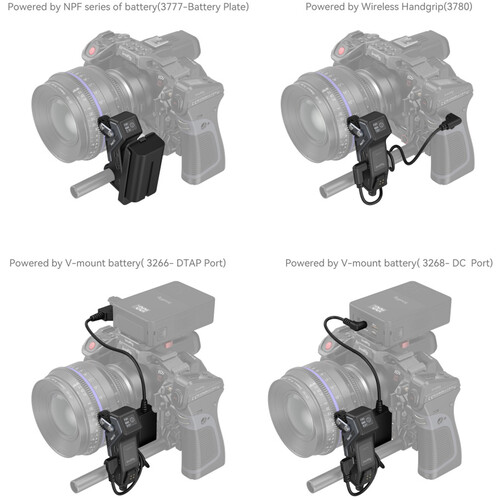

The motor can be powered using its USB-C input by utilizing a separately available L-series battery plate, or you can use a D-Tap or DC cable to power from an external V-mount or Gold mount battery or battery plate. A second USB-C port can also pass run/stop controls to a compatible camera. It also supports PD/QC fast charge power sources up to 9V/18W. The motor can be mounted onto your rig using its single, built-in 15mm rod clamp.

Note: This motor is only compatible with SmallRig Wireless Follow Focus System components.

Compatibility

• 49/52/55/58/62/67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
• 15mm rod support system
• M0.8 lens and follow focus lens gear ring
• Incompatible with non-SmallRig wireless follow focus system
• PD/QC fast charging protocol
