ARRI EB MAX 12/18, ALF DMX AutoScan, 50/60/75/300/1000 Hz International (VEAM), 230 V~ Bare Ends


Available on back-order

$37,312.00 inc GST

Available on back-order

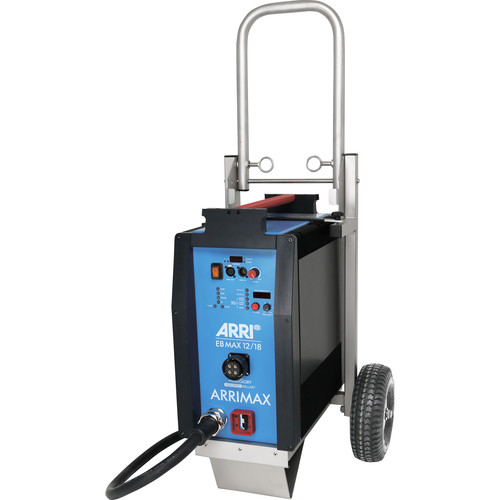

The ARRI EB MAX 12/18 Ballast is intended for use with select ARRI fresnel lamp heads. This ballast has ALF (Active Line Filter), which provides a higher power factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems. Cable Loss Compensation, which prevents power loss in head-to-ballast cables up to 300′ long, is also featured. The ballast has a low-noise switch and a power factor of 0.99.

This ballast has substantial DMX control. In addition to On/Off and dimming, both operation mode and frequency can be controlled remotely. For ease of use, indicators on the ballast’s front panel display the lamp wattage, DMX channel, operation mode, and selected lamp frequency. High speed shooters will appreciate features such as Active Line Filter (ALF), and AutoScan, ensuring optimum light and image quality for high-speed recordings up to 1000 fps.

  • Cable Loss Compensation prevents power loss in head-to-ballast cables up to 300′ long
  • Active Line Filter (ALF) increases power efficiency
  • DMX 512 for precision remote control
  • Low-noise switch
  • Compatibility
  • M-Series ARRIMAX 12/18
  • ARRI Daylight 18/12
  • ARRI Compact 12,000
  • ARRISUN 120
SKU: L2.0016748 Category:
Weight77 kg
Dimensions77 × 86 × 63 cm
