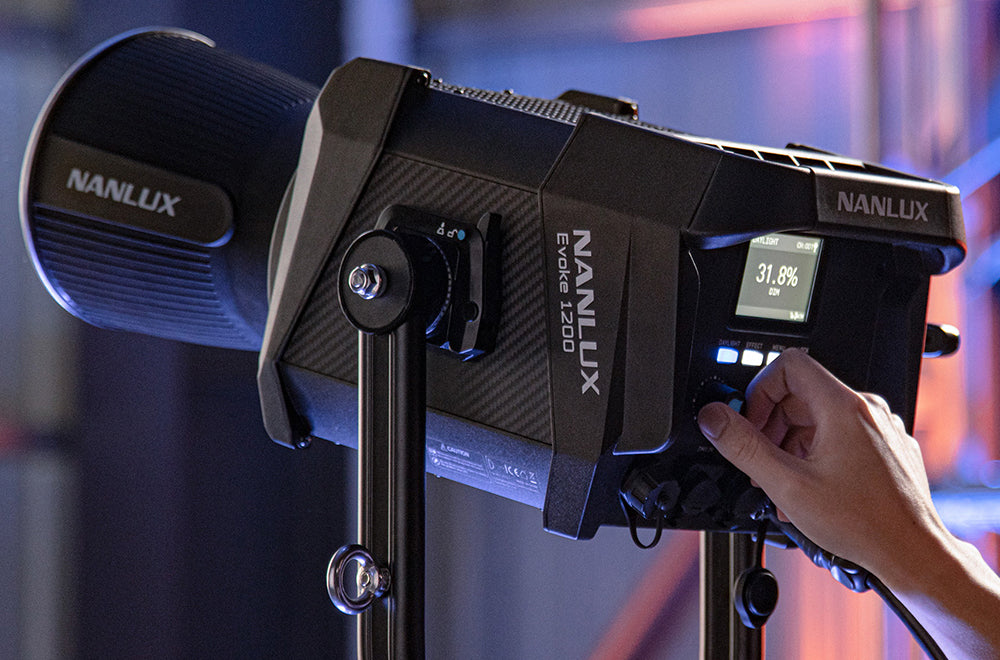

Nanlux Evoke 1200 LED Spot Light 5600K
Available on back-order
$5,130.40 inc GST
Available on back-order
Team Digital can get you into this Evoke 1200 for as little as $168.16 per month (over 36 months). ABN holders only; T&Cs apply. Contact one of our finance consultants for more details.
The Evoke 1200 delivers stunning levels of flicker free, controllable light , comparable to that of a 1.8kW PAR or 2.5kW HMI Fresnel.
CRI:96 TCLI:97
Naturally Bright
The ingenious design of the COB delivers extremely powerful, natural looking light.
Solid Design
Functional design, robust construction and IP54 rating makes the Evoke ideal for use in almost any conditions.
Ultimate Control
Fully controllable, the EVOKE 1200 supports both wired and wireless control via Nanlink APP, DMX/RDM, Bluetooth and Lumenradio TimoTwo.
Incredible Versatility
The Evoke 1200 is compatible with a selection of lighting shaping tools, accessories and modifiers. The large aperture and sturdy fixings of the NL mount allows the user to quickly switch between optics to sculpture, shape and modify the output with absolutely no compromise in beam quality, color or intensity.

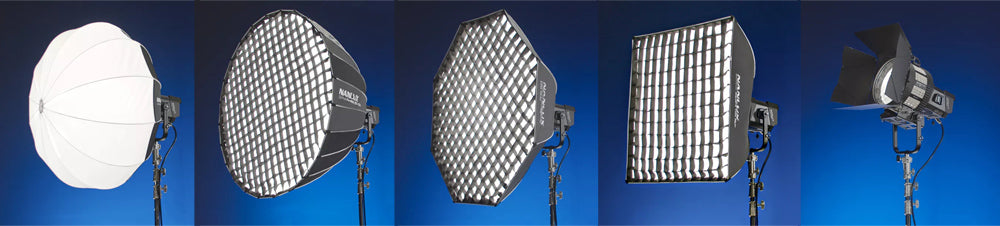

New Nanlux Light Modifiers
Precision Performance
The highly accurate user interface, with its 0.1% precision allows for pin-point accuracy in both output and intensity.
All The Light You Need
The Evoke 1200 has been developed by the Nanlux technical team. By listening to our customers feedback and carefully studying the needs of the end user, we have been able to create a truly versatile fixture that delivers powerful, flexible output, in almost any conditions. With a perfect balance of simple, intuitive operation, with versatile, controllable output, plus the capability and convenience of LEDillumination, the Evoke 1200 is all the light you need.
Adopting a popular, easy-to-use form factor, this Evoke 1200 LED Light from Nanlux has a daylight color temperature of 5600K and a high CRI/TLCI rating of 96/97 to indicate precise accuracy in color rendition. The fixture with yoke measures 19.8 x 14.5 x 8.3″ and will give you 18,400 Lux with the included 45° reflector, rivaling the output of a 1.2K incandescent fixture. It is dimmable from 0 to 100% and you can make power adjustments and turn the unit on and off locally on the light as well as from a remote console or wirelessly via 2.4 GHz signal, Bluetooth, DMX/RDM, or LumenRadio. You can turn the quiet fan off for in sound-sensitive situations.
One of the many benefits is a library of special effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its universal power supply, but it can also run on optional batteries when mains current is unavailable. Optional accessories include a variety of softboxes and the FL-35 Fresnel lens.
Features:
- Color Temp: 5600K, CRI/TLCI: 96/97
- Bluetooth, Wired or Wireless DMX
- Optional Battery, IP54 Weatherproof
- Optional Softboxes and Fresnel Lens
- 11 Special Effects, Dims 0 to 100%
- NLM200 mount
Specifications:
| EVOKE Technical Data | ||||
| Model | Evoke 1200 | |||
| Rated Power | 1200W | |||
| Input Voltage/Current | DC48V/25A Max, AC100-240V 50/60Hz | |||
| CRI | 96 | |||
| TLCI | 97 | |||
| CCT | 5600K | |||
| Dimming | 0-100% in ultra-precise intervals of just 0.1% | |||
| IP Rating | IP54 | |||
| Control | On-board controller, 2.4G, Bluetooth, DMX, RDM, LumenRadio, Wire Control | |||
| Effect | INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding | |||
| Product Size | Light Fixture (without Yoke): 330x241x210mm / 12.99×9.48×8.26″ Light Fixture (with Yoke): 503x370x210mm / 19.8×14.56×8.26″ Power Supply: 376.5x181x246mm / 14.82×7.12×9.68″ |
|||
| Product Weight | Light Fixture: 6.94kg/15.3lb Yoke: 1.84kg/4.05lb Power Supply: 10.5kg/23.14lb |
|||
| Configuration | Evoke 1200 x1 / Yoke x1 / Power Supply x1 / Reflector x1 / Connecting Cable 5M x1 / Power Cable 4.5M x1 / USB Flash Drive x1 / User Manual x1 / DMX Reference Guide x1 | |||
| Illumination (lux/ fc) | ||||
| CCT | 5600K | |||
| Distance | 3M | 5M | 7M | 10M |
| Light Only | 5532 lux/514fc | 2373 lux/220 fc | 1266 lux/118fc | 679 lux/63 fc |
| With Reflector | 18460 lux/1715fc | 6583 lux/612fc | 3671 lux/341 fc | 2021 lux/188 fc |
| With Fresnel Lens 11° | 65280 lux/6065 fc | 22080 lux/ 2051 fc | 11765 lux/ 1093 fc | 6308 lux/586 fc |
| With Fresnel Lens 30° | 25560 lux/2375 fc | 10640 lux/988 fc | 5674 lux/ 527 fc | 3043 lux / 283 fc |
| With Fresnel Lens 45° | 15170 lux/ 1409 fc | 5718lux/531 fc | 3065 lux/285 fc | 1644 lux/153 fc |
Package Contents:
1x Nanlux Evoke 1200 LED Light
1x Yoke
1x Power Supply
1x Reflector
1x Connecting Cable (16.4′)
1x Power Cable (15′)
1x USB Flash Drive
1x Limited 3-Year Warranty
| Weight | 27 kg |
|---|---|
| Dimensions | 0.53 × 0.53 × 0.55 cm |
