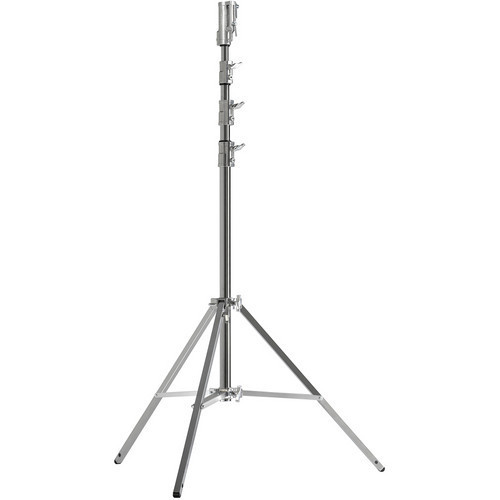

Kupo 543M 4.2m Master High Cine Stand

When you need to support 40kg, up to 4.2m off the gound, this is the stand for you.

The Kupo 543M Master High Cine Stand features an all-steel construction with chrome plated finish. The high cine stand features a triple function universal head, the head features both a 28mm (1-1/8″) junior receiver and a 16mm (5/8″) baby receiver, plus a multi-direction 16mm (5/8) stud. It has a leveling leg that enables the user to extend one leg more than the others to level stand on an incline like stairs or uneven terrain. Whether you are mounting large HMI, green screen or a boom, this stand can safely support your lighting at full height due to its strength and large 140cm footprint diameter for great stability.

Specifications:

3 risers, 4 sections of diameters 45mm, 40mm, 35mm, 30mm

Leg diameter of 25mm x 25mm, with 1 levelling leg

Chrome plated steel construction

Folded dimensions: 145cm

Fully extended height: 420cm

Minimum working height: 140cm

Product weight: 12.5kg

Footprint diameter: 140cm

Maximum safe working load: 40kg

Compatible with Kupo KC100S casters (not included)

Specifications

Length     149.7 cm
Width     14.3 cm
Height     14.3 cm
Weight     12 kg
Risers     3
Sections     4
1st Riser Diameter     45 mm
2nd Riser Diameter     40 mm
3rd Riser Diameter     35 mm
4th Riser Diameter     30 mm
Leg Diameter     25 mm
Primary Material     Chrome Plated Steel
Secondary Material     Aluminum Locking Collars
Tertiary Material     Stainless Steel Bolts
Leveling Leg     Yes
Fixed Stand Adapter     Triple Function Universal Head with 1-1/8″ and 5/8″ receivers with multi-direction 5/8 in Stud
Stand Adapter Type     Welded
Spring cushioned     No
Closed Length     145 cm
Minimum Extension Height    174.62 cm
Maximum Extension Height     420 cm
Maximum Load     40 kg
Footprint Diameter     140 cm

Compatible with the Kupo KC-100S castors, available separately
