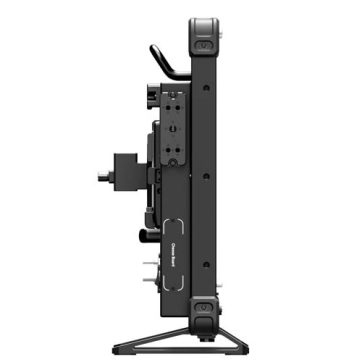

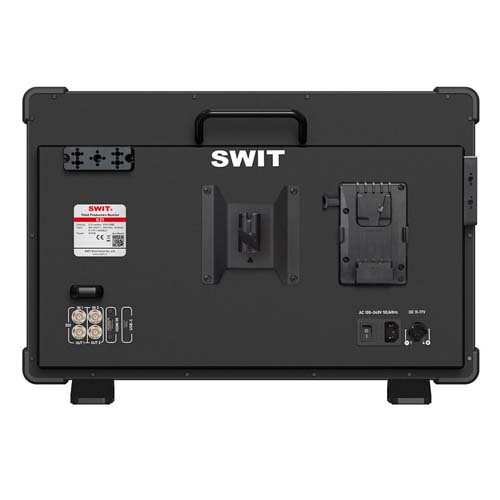

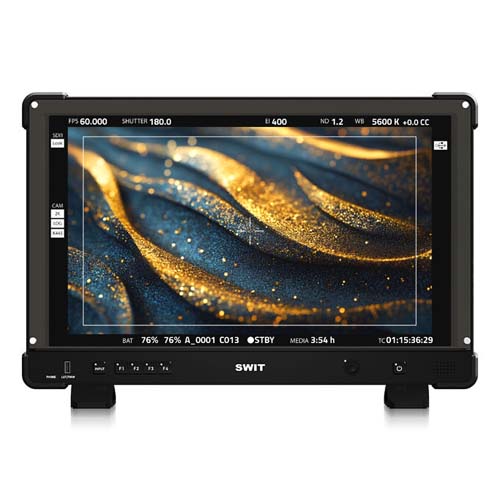

SWIT K21 Field Monitor 21.5″

The SWIT K21 is a commanding 21.5-inch monitor featuring a vibrant 1920×1080 FHD IPS panel with an exceptional 1500nits brightness, delivering crystal-clear visuals even under the brightest sunlight. Its expansive screen is perfectly suited for critical on-set monitoring. Built with a rugged all-aluminum housing, complete with rubber corner protection and a pre-installed screen protective glass, the K21 is engineered to endure the rigors of demanding production environments. The intuitive Scene OS empowers users with customizable workflows and quick access to essential tools. Equipped with comprehensive video and audio analysis features, automated color calibration, and versatile mounting and power options, the K21 sets a new standard for professional field monitoring.

What’s in the Box:
• 1 x SWIT K21 Field Monitor
• 1 x Screen Protective Glass (Pre-installed)
• 2 x Cheese Plates
• 1 x VESA-to-C-stand Adaptor

Technical Specifications:

Display:
• Panel Type: IPS, LED backlight
• Size: 21.5 inches (54.6 cm)
• Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Brightness: 1500 nits
• Contrast Ratio: 1100:1
• Color Depth: 10-bit
• Viewing Angle: 178° (Horizontal) / 178° (Vertical)

Interfaces:
• SDI: 3G-SDI (2-in, 2-out)
• HDMI: HDMI 1.4
• USB: USB-A, USB-C
• Audio: 3.5mm audio output

Power:
• Power Input: AC 100-240V, DC XLR (11-17V), V-mount battery

Features:
• Sunlight-readable 1500nits brightness
• Durable all-aluminum housing
• Rubber corner protection
• Pre-installed screen protective glass
• Scene OS with 8 customizable scenes
• 8 tool shortcuts per scene
• Anamorphic de-squeeze (up to 2x)
• Custom False color ranges
• Adjustable Zebra stripes
• HDR/SDR De-log LUTs (ARRI, RED, SONY, Canon)
• User-uploadable 3D LUTs
• Waveform | Vectors copes | Histogram
• Peaking | Focus assist | Crosshatch | Safe area markers
• SDI audio meters
• Timecode display
• Automatic 3DLUT color calibration via USB-C (X-rite CC Display Pro HL compatible)
• Interchangeable cheese plates (x2) with 6 mounting positions each
• VESA-to-C-stand adaptor

Physical:
• Dimensions: 531 mm x 345.7 mm x 92.7 mm
• Weight: 7.5 kg
• Working Temperature: 0°C ~ 40°C
