MILLER DS10 (182) Solo 75 2-St Alloy Tripod (1630) Pan Handle (681) Softcase (3516)

DS10 Solo 75 2 Stage Alloy

• Compact, lightweight, dependable
• Consistent fluid drag performance in extreme environments
• 2 selectable positions of counterbalance
• Perfect for camera payloads to 2.5-5kg (5.5-11lbs)
• Integrated 75mm bowl
• 2-stage rapid leg lock extension
• Durable black anodised alloy tubing

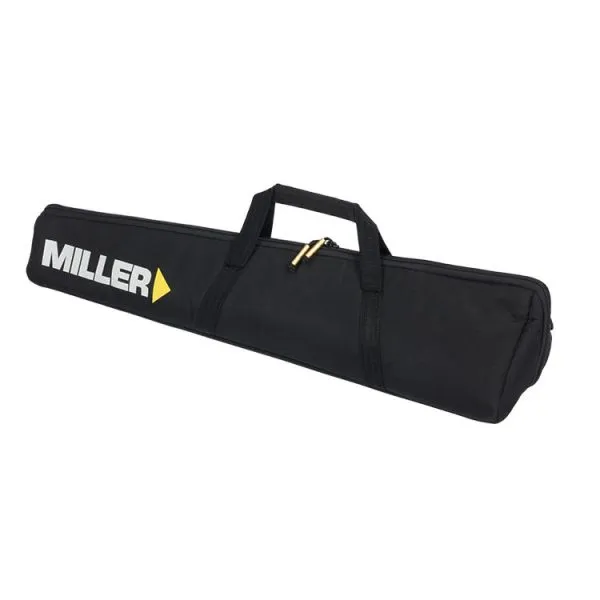

• Comes with 2-stage tripod bag
• 3 year warranty

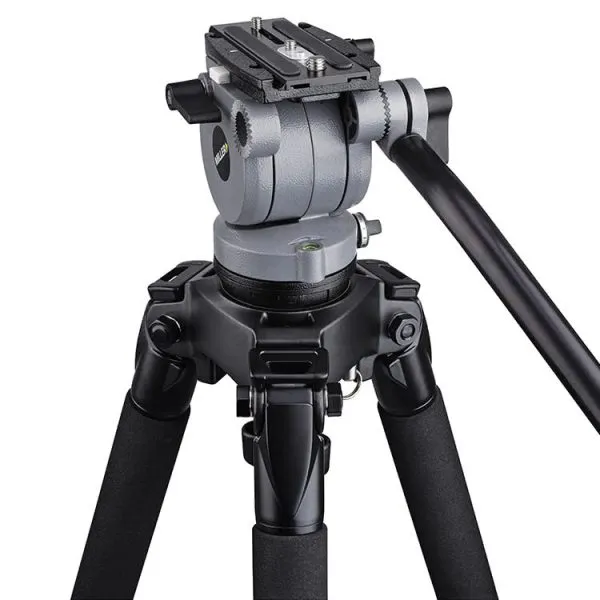

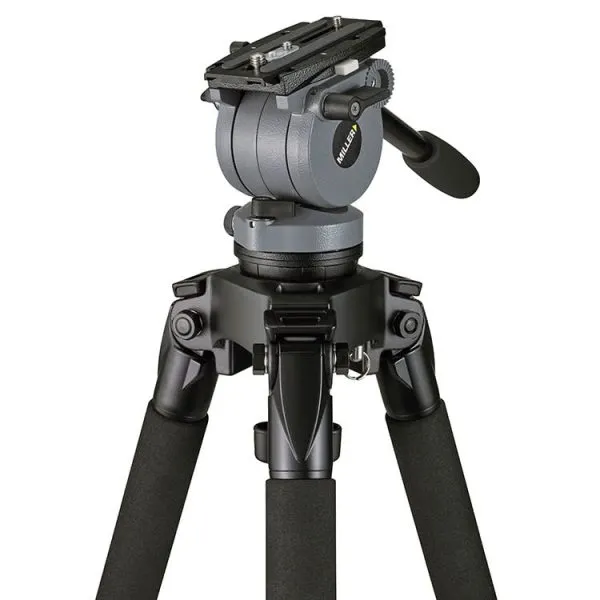

The Millar 1640 DS10 Solo 75 2 Stage system combines the ultra-rigid alloy Solo 1630 tripod with the versatile DS10 75mm ball levelling head & selectable counterbalance.

The DS10 fluid head has earned a reputation for providing professional fluid drag movement for camera operators working solo in the field. DS10 is an all in one solution for payloads up to 5kg (11lbs).

Whether you are in the field or configured for production use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

The DS10 Solo 75 2 Stage (alloy) tripod resulting in a working height range of 371-1762mm (14.6-69.4″), and offering rapid action twist locks on independent stages with the versatility to set up system across all terrains.

1630 SOLO TRIPOD SPECIFICATIONS

Weight: 2.9 kg (6.4 lbs)
Payload capacity: 20.0 kg (44.1 lbs)
Height range: 234 – 1625 mm (9.2 – 64”)
Bowl diameter: 75 mm (2.9”)
Transport length: 658 mm (25.9”)
Leg extension: 2 stage telescopic
Lock type: Concentric Rapid lock
Leg material: Alloy
Warranty: 3 Years

DS10 HEAD SPECIFICATIONS

Weight: 1.5 kg (3.3 lbs)
Payload range: 2.5 – 5.0 kg (5.5 – 11.0 lbs)
Pan/tilt drag: Fixed drag position
Counterbalance: 2 selectable positions
Pan/tilt lock: Positive lock caliper brake system
Tilt range: + 90° / -75°
Pan range: 360°
Camera platform: Sliding camera plate
Sliding range: 60 mm (2.4”)
Mounting base: Ø75 mm (2.9”) ball levelling
Height above bowl: 137 mm (5.4”)
Illumination: N/A
Pan handle: Fixed 390 mm (15.4”)
Temperature range: -40° to +65° C (-40° to +149° F)
Material: Lightweight hi-strength diecast aluminium alloy and rigid composite polymers
Finish: Durable grey ripple (low sheen) with anti-corrosive pre-treatment
Sealing: Water and dust resistant
Warranty: 3 Years
