MILLER DS20 (184) Solo 75 2-St Alloy Tripod (1630) Pan Handle (681) Softcase (3516)

DS20 Solo 75 2 Stage Alloy

• Compact, lightweight and a hi-performer
• Consistent fluid drag performance in extreme environments
• 2 selectable positions of counterbalance
• Perfect for camera payloads to 5-10kg (11-22lbs)
• Integrated 75mm bowl
• 2-stage rapid leg lock extension
• Durable black anodised alloy tubing

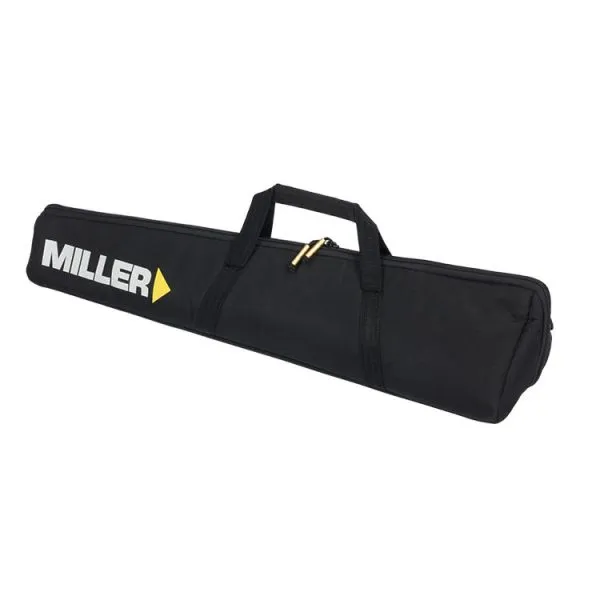

• Comes with 2-stage tripod bag
• 3 year warranty

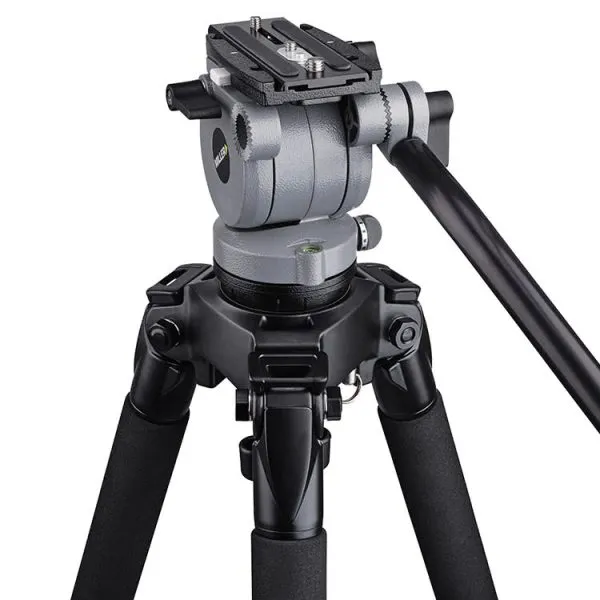

The Millar 1643 DS20 Solo 75 2 Stage Alloy system offers incredible price-performance solution for 10 kg/22 lbs payloads, combining the ultra-rigid alloy Solo 1630 tripod with the versatile DS20 75mm ball levelling head & selectable counterbalance.

The DS20 provides a perfect lightweight solution for those who want a smaller fluid head but need more capacity than the DS10. An economical solution for payloads up to 10kg (22lbs).

Whether you are in the field or configured for small studio use, the dual position counterbalance plus
60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations. Whatever your application the DS20 will impress your clients.

The DS20 Solo 75 2 Stage (alloy) tripod resulting in a working height range of 371-1762mm (14.6-69.4″), offering rapid action twist locks on independent stages with the versatility to set up system across all terrains.

SOLO 1630 TRIPOD SPECIFICATIONS

Weight: 2.9 kg (6.4 lbs)
Payload capacity: 20.0 kg (44.1 lbs)
Height range: 234 – 1625 mm (9.2 – 64”)
Bowl diameter: 75 mm (2.9”)
Transport length: 658 mm (25.9”)
Leg extension: 2 stage telescopic
Lock type: Concentric Rapid lock
Leg material: Alloy
Warranty: 3 Years

DS20 HEAD SPECIFICATIONS

Weight: 1.5 kg (3.3 lbs)
Payload range: 5.0 – 10.0 kg (11.0 – 22.0 lbs)
Pan/tilt drag: Fixed drag position
Counterbalance: 2 selectable positions
Pan/tilt lock: Positive lock caliper brake system
Tilt range: + 90° / -75°
Pan range: 360°
Camera platform: Sliding camera plate
Sliding range: 60 mm (2.4”)
Mounting base: Ø75 mm (2.9”) ball levelling
Height above bowl: 137 mm (5.4”)
Illumination: N/A
Pan handle: Fixed 390 mm (15.4”)
Temperature range: -40° to +65° C (-40° to +149° F)
Material: Lightweight hi-strength diecast aluminium alloy and rigid composite polymers
Finish: Durable grey ripple (low sheen) with anti-corrosive pre-treatment
Sealing: Water and dust resistant
Warranty: 3 Years
