MILLER CX6 (1092) Solo 75 2-St Alloy Tripod (1630) Pan Handle (679) Strap (1520) Softcase (3514)

CX6 Solo 75 2 Stage Alloy

• Powerful, light and multifunctional
• 75mm ball levelling
• Perfect for payloads to 0-12kg (26.4bs)
• 15+0 CB Plus selectable counterbalance positions
• Ergonomically located CB Plus switch
• 3+0 selectable positions of fluid pan and tilt drag
• Positive selection radial ring controls
• 2-stage rapid leg lock extension
• Durable black anodised alloy tubing
• Comes with 2-stage tripod bag
• 3 year warranty

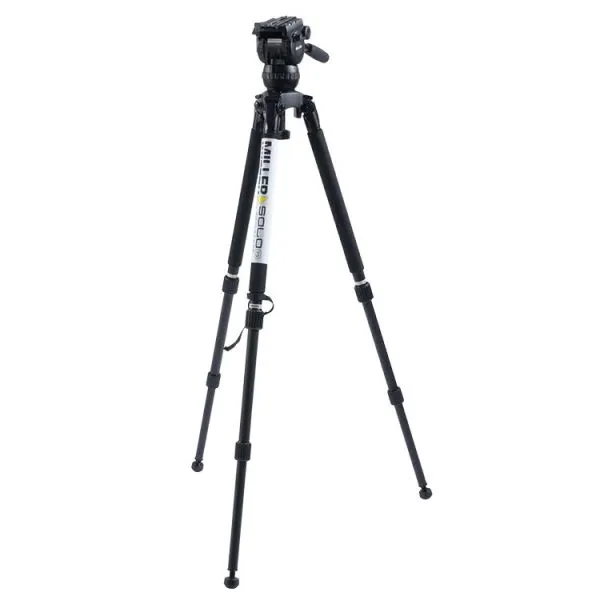

The Millar 3726 CX6 Solo 75 2 Stage Alloy tripod system combines the innovative 1630 Solo tripod and CX6 fluid is designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.

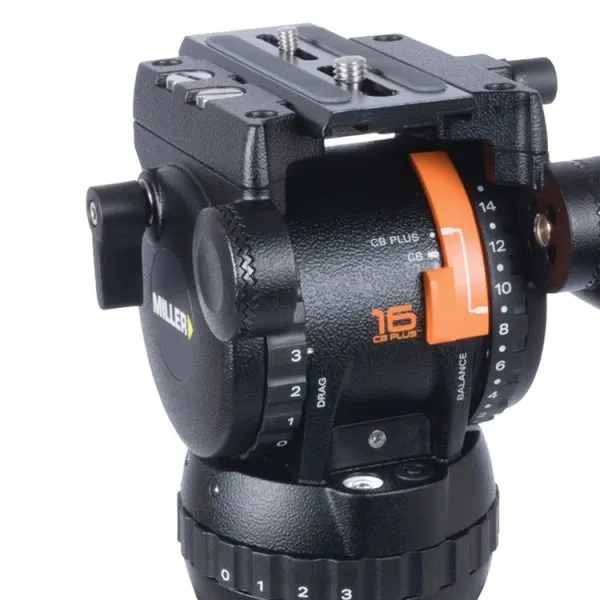

The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.

The CX6 Solo 75 2 Stage Alloy tripod yields a height range of 404-1795mm (15.9-70.7″), offer rapid action twist locks and the versatility of the 3 position leg angles.

1630 SOLO TRIPOD SPECIFICATIONS

Weight: 2.9 kg (6.4 lbs)
Payload capacity: 20.0 kg (44.1 lbs)
Height range: 234 – 1625 mm (9.2 – 64”)
Bowl diameter: 75 mm (2.9”)
Transport length: 658 mm (25.9”)
Leg extension: 2 stage telescopic
Lock type: Concentric Rapid lock
Leg material: Alloy
Warranty: 3 Years

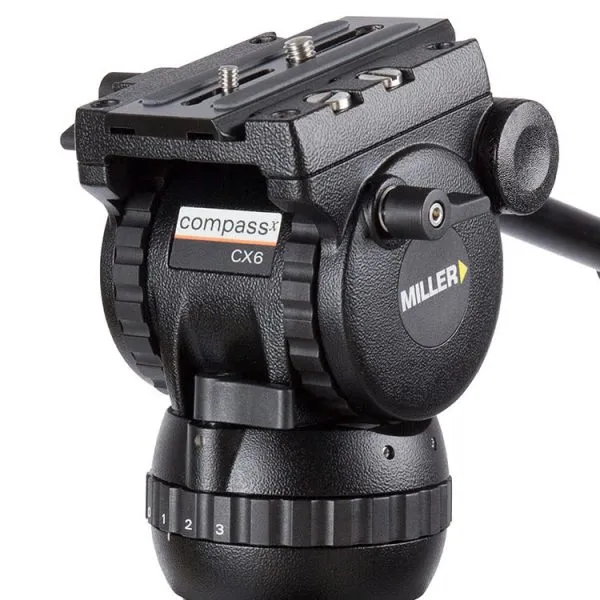

1092 COMPASSX 6 FLUID HEAD SPECIFICATIONS

Weight: 2.3kg (5.1lbs)
Payload range: 0 – 12.0kg (0 – 26.4lbs)
Pan/tilt drag: 3 selectable fluid drag positions + 0
Counterbalance: 16 selectable positions (15 + 0)
Pan/tilt lock: Positive lock caliper brake system
Tilt range: + 90° / -75°
Pan range: 360°
Camera platform: Quick release, side load camera plate
Sliding range: 60mm (2.4”)
Mounting base: Ø75mm (2.9”) ball levelling
Height above bowl: 167mm (6.6”)
Illumination: Bubble level
Pan handle: Fixed 390mm (15.4”)
Temperature range: -40° to +65° C (-40° to +149° F)
Material: Lightweight hi-strength diecast aluminium alloy and rigid composite polymers
Finish: Durable black ripple (low sheen) with anti-corrosive pre-treatment
Sealing: Water and dust resistant
Warranty: 3 Years
